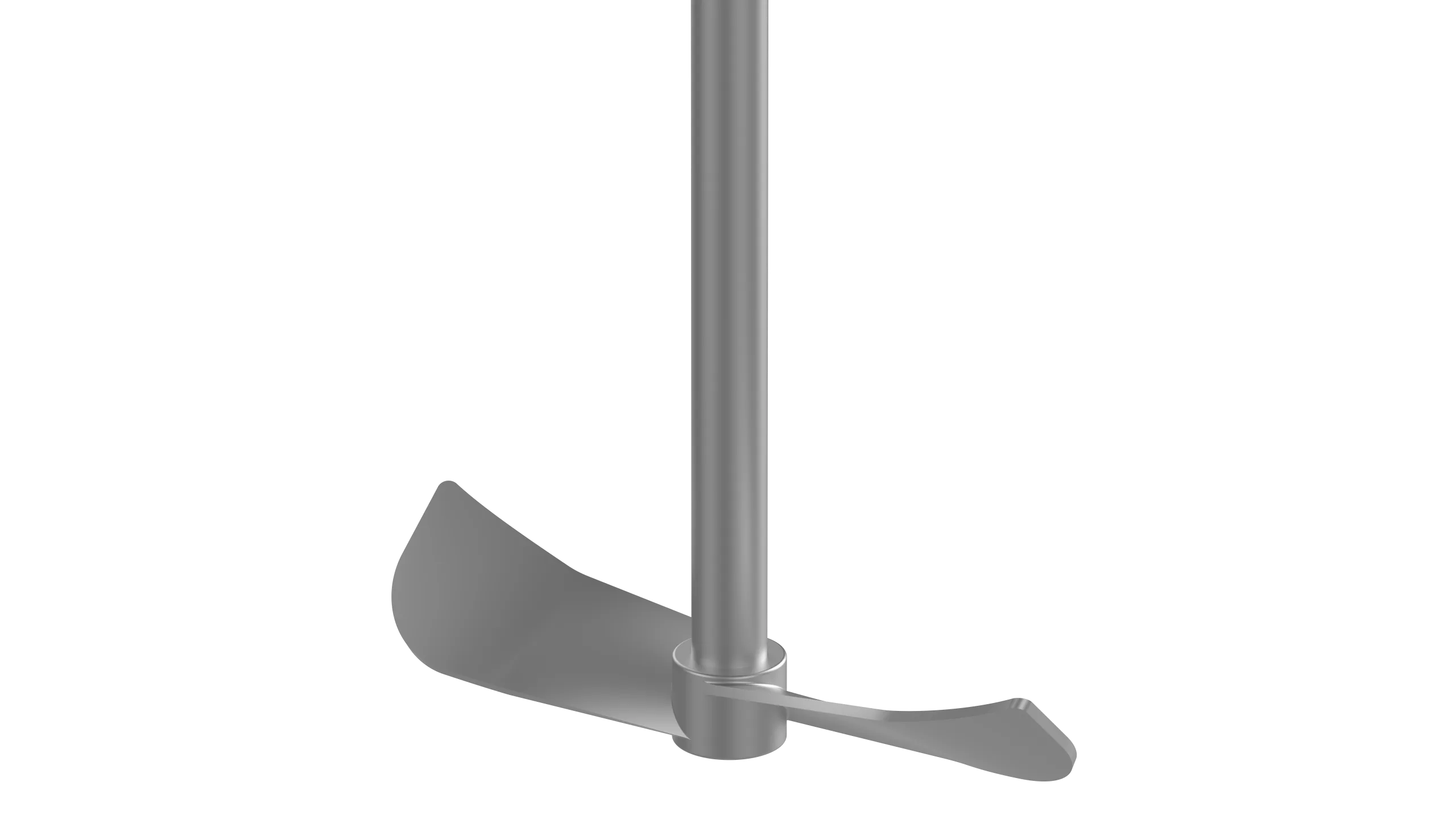

The TVM impeller is a high suspension axial flow impeller specifically designed for tall and deep tank applications. It achieves high particle velocities by providing uniform energy distribution in low-viscosity systems. It delivers superior performance in crystallization, sedimentation and suspension/emulsion polymerization processes.
The TVM is an axial flow impeller manufactured by Mechanimix, specifically designed for deep tank applications. It operates across a diameter range of Ø250–3000 mm and a viscosity range of 1–50,000 cP. It delivers high suspension capacity and particle velocity with low energy consumption, and is preferred in crystallization and sedimentation processes in the chemical, polymer and hydrometallurgy industries.
Provides effective particle transport in deep tanks through a high suspension axial flow pattern.
Delivers maximum suspension capacity at minimum power consumption with optimized blade geometry.
Ensures equal energy distribution throughout the tank volume, preventing dead zone formation and increasing process efficiency.
Significantly increases jacket and coil heat transfer coefficients through an effective flow pattern.
Achieves critical suspension velocities by preventing solid particle sedimentation even in deep tank geometries.
Minimizes blend time with an optimized flow pattern, increasing process efficiency and production capacity.
Improves product quality by providing homogeneous suspension in crystallization and sedimentation reactors.
Optimized for uniform particle size distribution in suspension and emulsion polymerization processes.
Provides an ideal solution for precise crystallization and sedimentation processes in active pharmaceutical ingredient production.
Maximizes metal recovery efficiency by maintaining solid particle suspension in leaching tanks.
Extends shelf life by ensuring homogeneous mix quality in detergent, paint and coating production.
Achieves narrow crystal size distribution with homogeneous suspension in controlled crystal growth and nucleation processes.
| Feature | TVM Impeller |
|---|---|
| Diameter Range | 250 – 3000 mm |
| Number of Blades | 4 |
| Material | AISI 316L / Titanium / Hastelloy |
| Viscosity Range | 1 – 50,000 cP |
| Flow Type | Axial |
| Speed Range | 10 – 400 rpm |
| Application Type | High suspension, crystallization, sedimentation |
| Tank Geometry | Tall and deep tanks (H/T > 1.5) |
| Power Number (Np) | Low – medium |
| D/T Ratio | 0.3 – 0.5 |
Our engineering team will design the most suitable equipment solution for your process conditions with CFD analysis.
