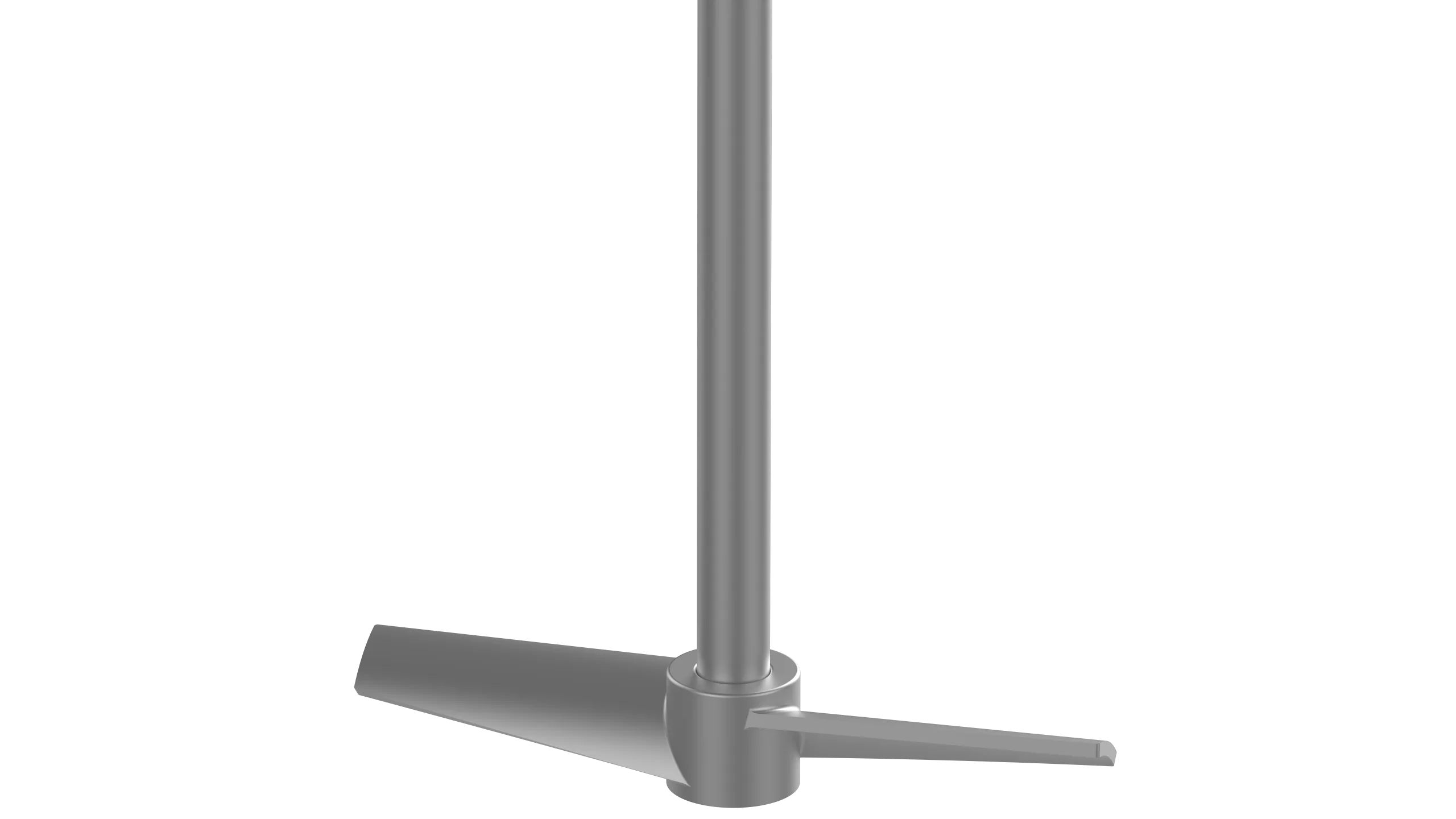

The HM impeller is a hydrofoil-design mixing impeller offering versatile performance across a wide viscosity range. With adjustable blade angles of 23° and 56°, it adapts to various process conditions including Non-Newtonian fluids. Available in 2, 3, or 4-blade configurations, it delivers high pumping capacity, rapid blending and excellent solids suspension performance.
The HM is a versatile hydrofoil mixing impeller manufactured by Mechanimix. Operating within a diameter range of Ø150–2500 mm and a viscosity range of 1–500 cP, it quickly adapts to different process conditions with adjustable blade angles of 23° and 56°. It is the preferred choice for solids suspension, heat transfer and blending operations in the minerals, chemicals, polymers and water treatment sectors.
The hydrofoil blade profile delivers high pumping capacity, providing fast and effective mixing throughout the tank.
High flow velocity ensures short blending times, boosting process efficiency and production capacity.
Blade angle options of 23° and 56° allow flow characteristics to be optimized for specific process conditions.
Excellent solids suspension performance ensures reliable operation in leaching, crystallization and precipitation processes.
The open hydrofoil design allows easy cleaning, making it suitable for food, pharmaceutical and biofuel applications.
Enhanced heat transfer capacity provides effective temperature control in exothermic and endothermic reactions.
Discover the high pumping capacity and solids suspension performance of the HM hydrofoil impeller.
Solids suspension and solution preparation processes in leaching, flotation and ore processing plants.
Chemical mixing, dissolution and neutralization processes in reactors and storage tanks.
Controlled mixing in polymerization reactors; blade geometry suited for Non-Newtonian fluids.
Chemical dosing and suspension mixing in flue gas desulfurization and water treatment plants.
Efficient mixing in fermentation and reaction tanks for biodiesel and bioethanol production.
Effective solid-liquid interaction with high flow capacity in crystallization and leaching processes.
| Feature | HM Impeller |
|---|---|
| Diameter Range | 150 – 2500 mm |
| Number of Blades | 2 / 3 / 4 (selectable) |
| Blade Angle | 23° and 56° (adjustable) |
| Blade Type | Hydrofoil profile |
| Material | AISI 304 / 316L / Hastelloy |
| Viscosity Range | 1 – 500 cP (including Non-Newtonian) |
| Flow Type | Axial (hydrofoil) |
| Speed Range | 50 – 1000 rpm |
| Pumping Capacity | High |
| Cleanability | Easy-clean design |
Our engineering team will design the most suitable equipment solution for your process conditions with CFD analysis.
