The HWM impeller generates axial thrust in low to medium viscosity systems through its wide blade design, delivering homogeneous energy distribution. With minimal local turbulence and low shear force, it provides reliable mixing performance in chemical, polymer and hydrometallurgy processes. Preferred for suspension, crystallization and precipitation applications including gassed environments.
The HWM is a wide blade axial flow impeller manufactured by Mechanimix. It operates in the diameter range of 200–3000 mm and viscosity range of 1–1000 cP. With its wide blade geometry, it delivers homogeneous energy distribution at low shear force and is preferred for suspension, crystallization and precipitation processes in the chemical, polymer and hydrometallurgy industries.
The wide blade design generates strong axial thrust, creating a homogeneous flow pattern throughout the tank.
Low speed and minimum power consumption reduce energy costs while delivering efficient mixing performance.
The wide blade impeller geometry preserves product quality in sensitive processes with low shear force.
AISI 316L and Hastelloy material options ensure long service life in aggressive chemical environments.
Homogeneous energy distribution enables efficient heat transfer, simplifying process temperature control.
Modular blade and hub system offers easy installation, quick replacement and minimum maintenance downtime.
Discover the high-efficiency performance of the HWM wide blade impeller in turbulent and transitional flow regimes.
Homogeneous mixing and dissolution processes in chemical reaction tanks and storage facilities.
Controlled mixing and homogeneous temperature distribution with low shear force in polymerization reactors.
Precise mixing and crystallization control in active pharmaceutical ingredient production.
Storage tank mixing and homogenization for detergents, shampoos and home care products.
Stable solid suspension in leaching, precipitation and suspension processes including gassed environments.
Controlled and reproducible production with minimal local turbulence in crystal growth processes.
| Feature | HWM Impeller |
|---|---|
| Diameter Range | 200 – 3000 mm |
| Number of Blades | 3 |
| Blade Type | Wide blade, axial thrust |
| Material | AISI 316L / Hastelloy / Duplex |
| Viscosity Range | 1 – 1,000 cP |
| Flow Type | Axial |
| Speed Range | 10 – 300 rpm |
| Energy Distribution | Homogeneous, minimal local turbulence |
| Shear Force | Low |
| Mounting | Modular hub system, standard flange |
Our engineering team will design the most suitable equipment solution for your process conditions with CFD analysis.
Get a Free Quote →

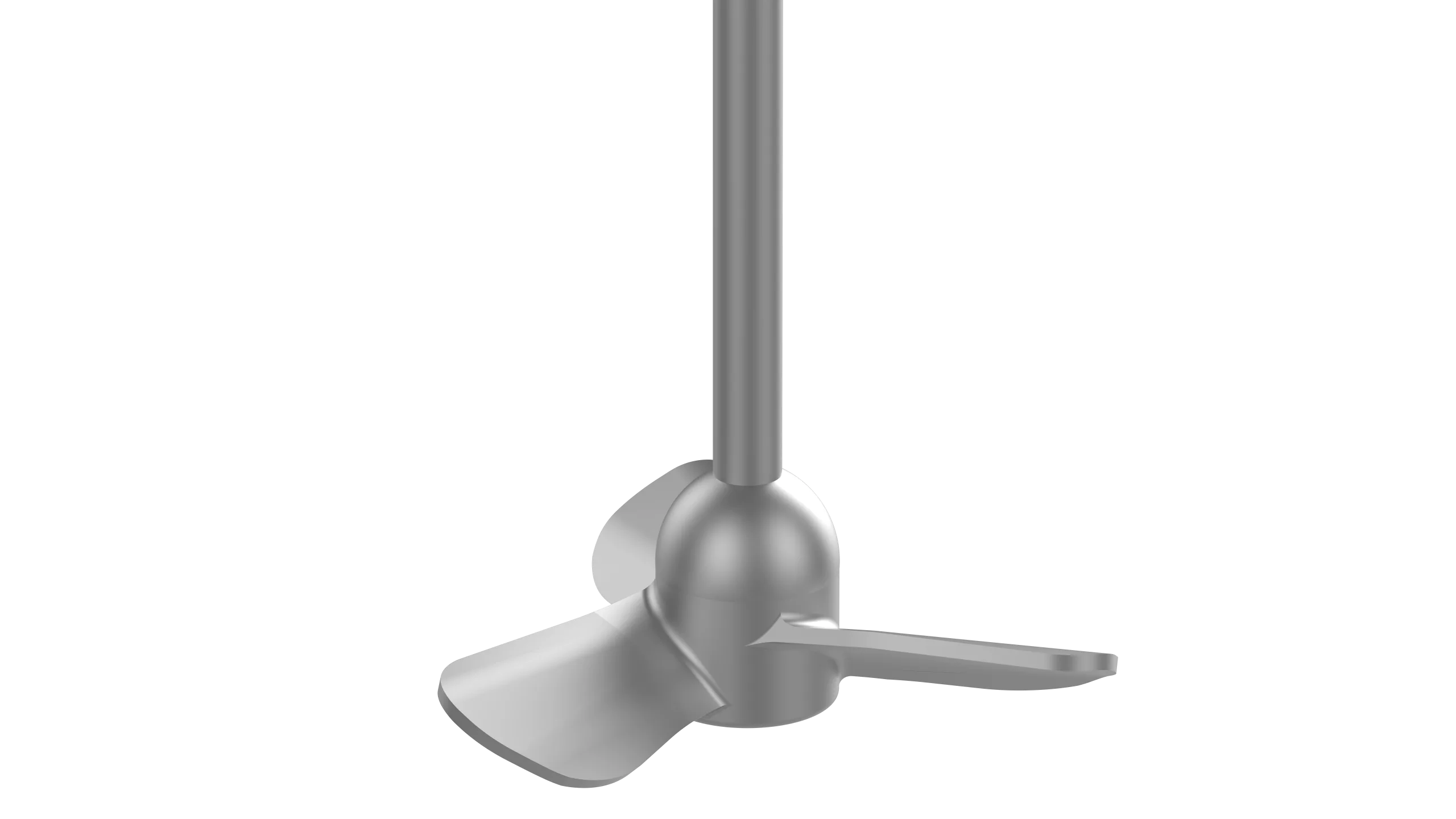

Hydrofoil multi-purpose impeller; delivers high pumping capacity and rapid mixing across a wide viscosity range.
View Details →

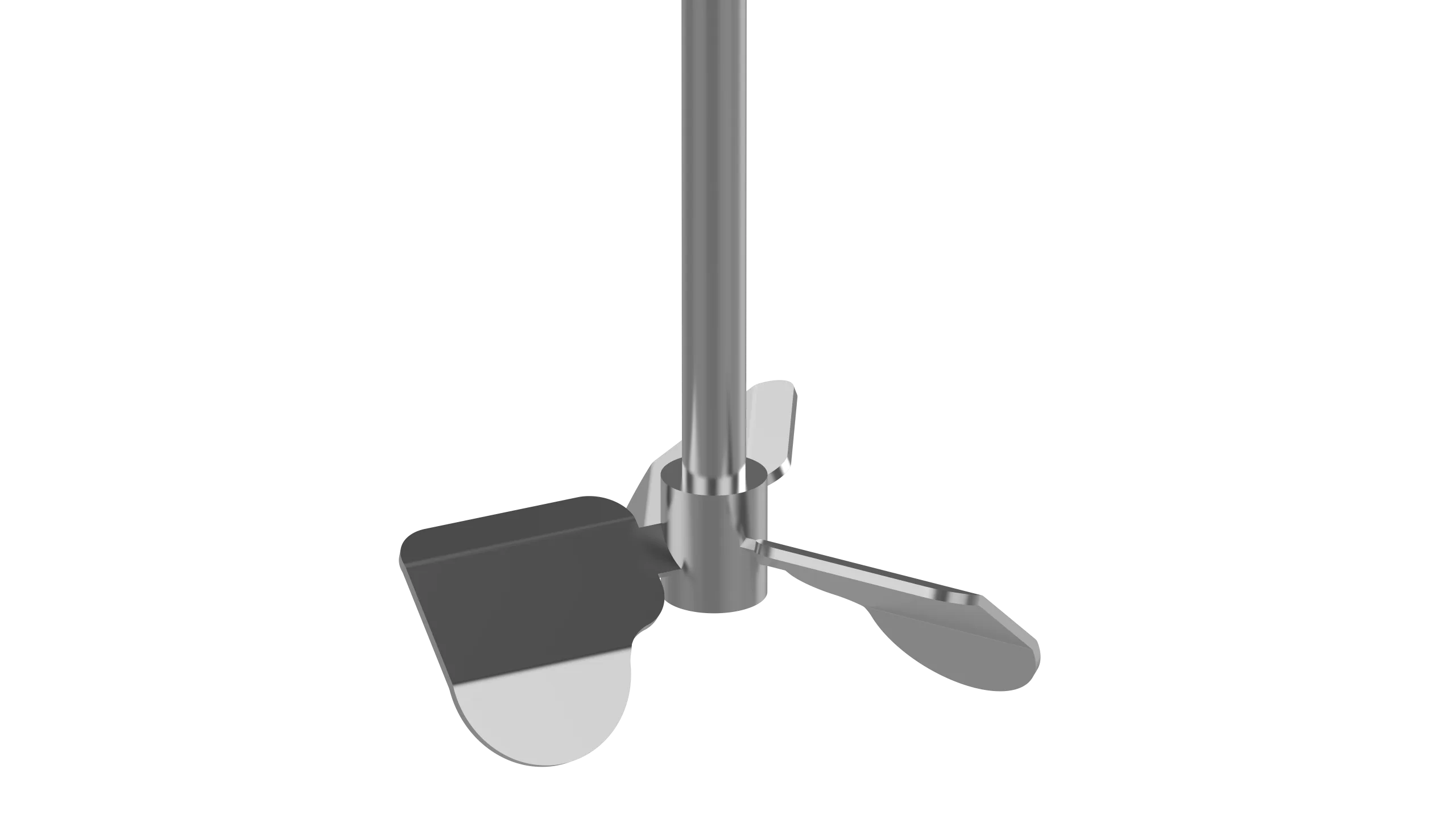

The wide blade version of the HWM family; provides stable performance with low shear force in crystallization, precipitation and emulsion polymerization processes.
View Details →
Gas dispersion impeller; optimized for effective gas dispersion and mass transfer in gas-liquid reactions.
View Details →
