With its double-jacketed heating/cooling design for precise temperature control, the RC-L Series features a PTFE-scraped anchor agitator that prevents wall residue and improves mixing efficiency. Its CIP/SIP compatible hygienic construction, optional vacuum and homogenizer integration make it a reliable solution for the cosmetic, pharmaceutical and food industries.

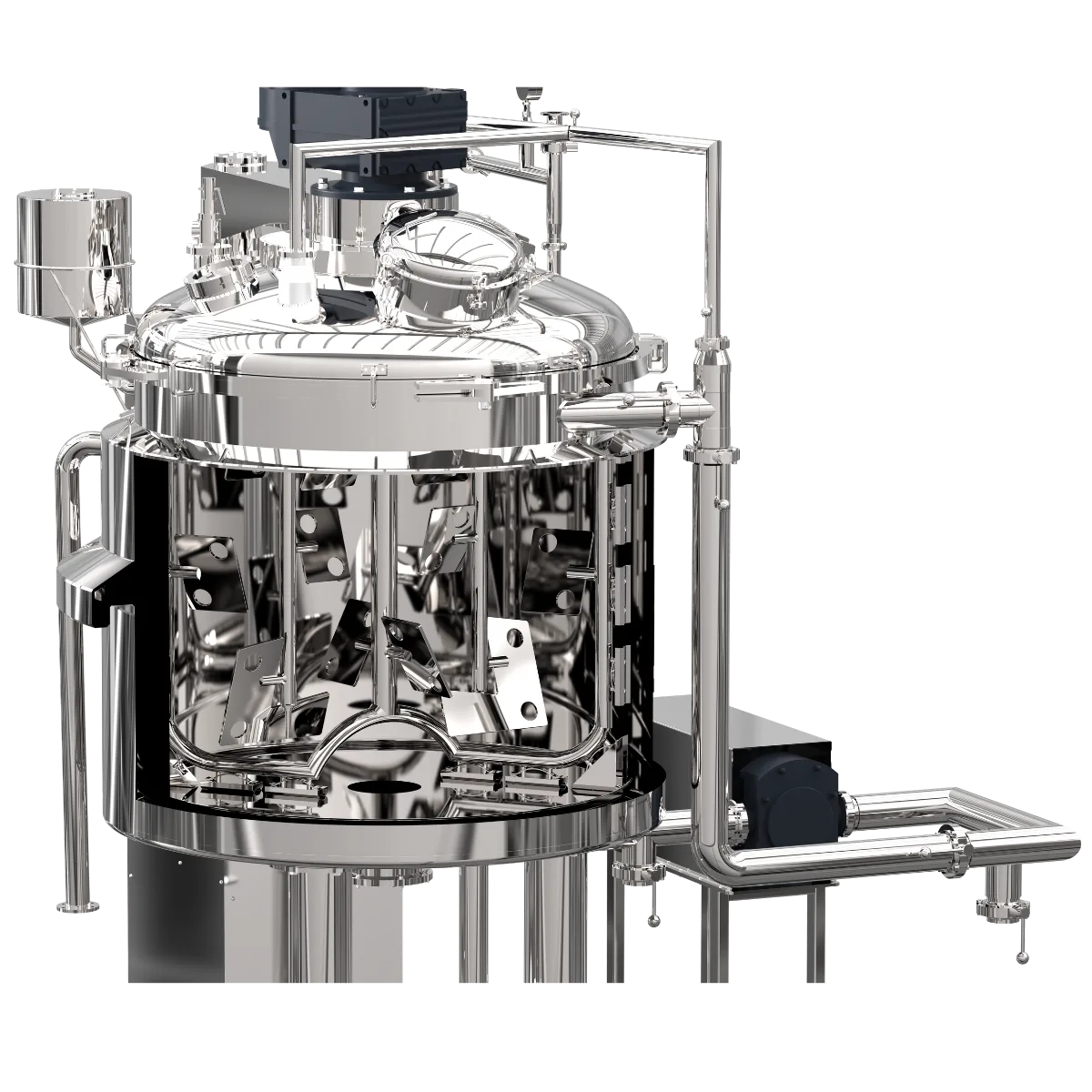

The RC-L Series is a double-jacketed stainless steel reactor manufactured by Mechanimix. With a capacity of 500–5,000 liters, it provides precise heat control at 4 bar pressure and 20–160°C temperature range. The PTFE-scraped anchor agitator prevents wall residue; its CIP/SIP compatible hygienic design is preferred for temperature-sensitive formulations in the cosmetic, pharmaceutical and food industries.
Homogeneous and indirect heat transfer via thermal fluid circulating in the jacket; ideal for temperature-sensitive formulations
Top-entry anchor agitator with wall scraping; ensures complete mixing and product homogeneity
Clean-in-place and sterilize-in-place with GMP standards support; minimum downtime
Optional vacuum degassing and high-shear homogenization; smooth, bubble-free products
Corrosion-resistant stainless steel; pharmaceutical and food-grade hygiene requirements
Vessel: -1/+4 bar, Jacket: up to 6 bar; reliable operation under vacuum and pressure
Mixing high-viscosity creams, lotions and gels; precise temperature control for emulsions and wax-based formulations
Mixing and homogenizing ointments, gels and suspensions; GMP-compliant hygienic production environment
Temperature-controlled mixing and processing of sauces, creams, chocolate and sugar-based products
Chemical reactions under controlled temperature and pressure; exothermic/endothermic process control with double-jacketed heating
Deaeration, degassing and concentration under vacuum; smooth and bubble-free product output
Stable emulsion production with high-shear homogenizer integration; two-phase formulations
| Feature | RC-L Series |
|---|---|
| Working Capacity | 500 – 5,000 L |
| Design Pressure (Vessel) | -1 to +4 bar |
| Design Pressure (Jacket) | Up to 6 bar |
| Operating Temperature | 20 – 160°C |
| Motor Power | 5 – 25 kW |
| Speed Range | 5 – 60 RPM |
| Agitator | Top-entry PTFE-scraped anchor agitator |
| Mechanical Seal | Single Acting |
| Contact Surface Material | AISI 316L / PTFE Scrapers |
| Outer Surface | AISI 304 / AISI 316L |
| CIP/SIP | Fully compatible; supports GMP standards |
| Options | Vacuum, homogenizer integration |
Our engineering team will design the most suitable equipment solution for your process conditions with CFD analysis.
