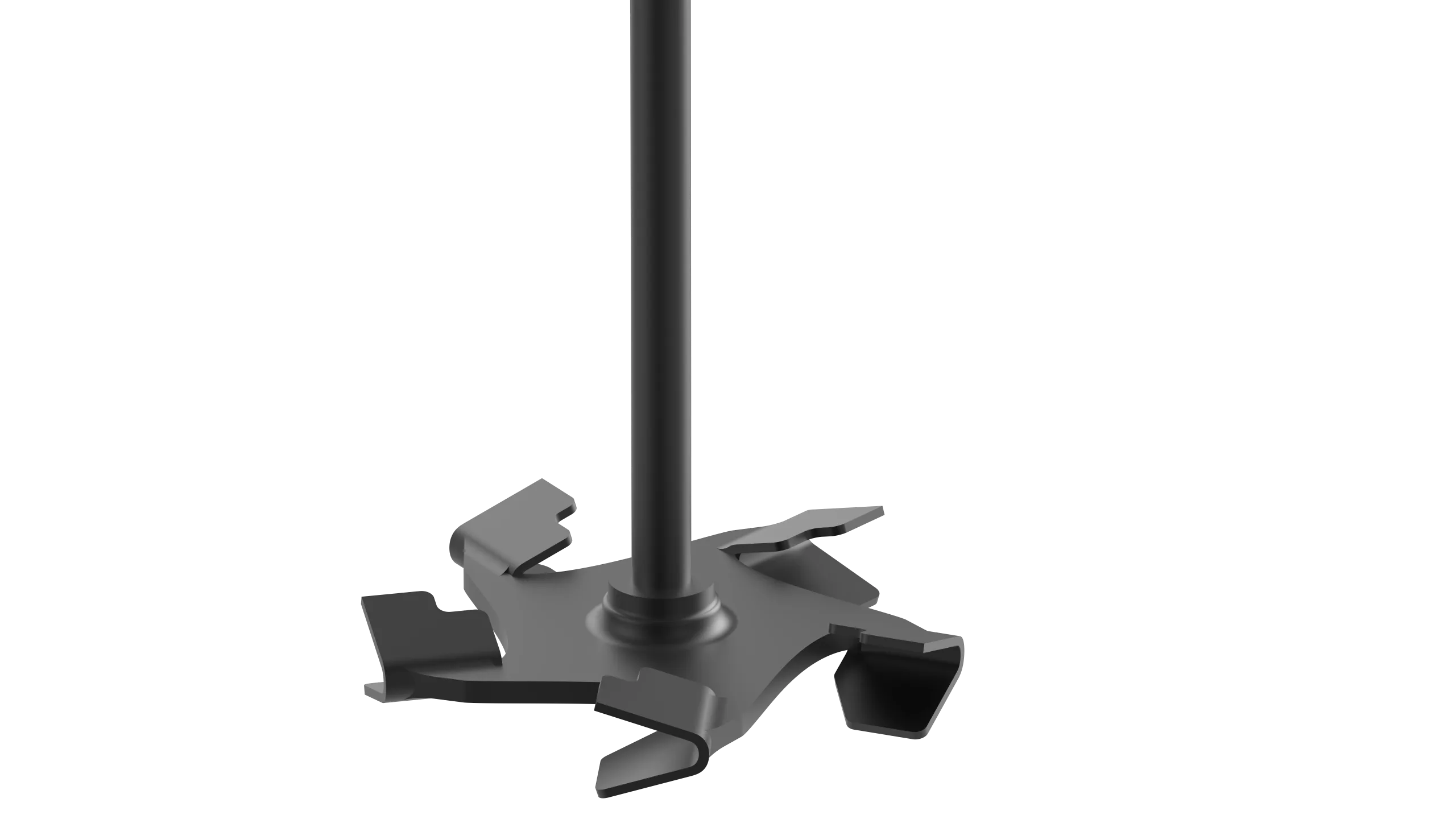

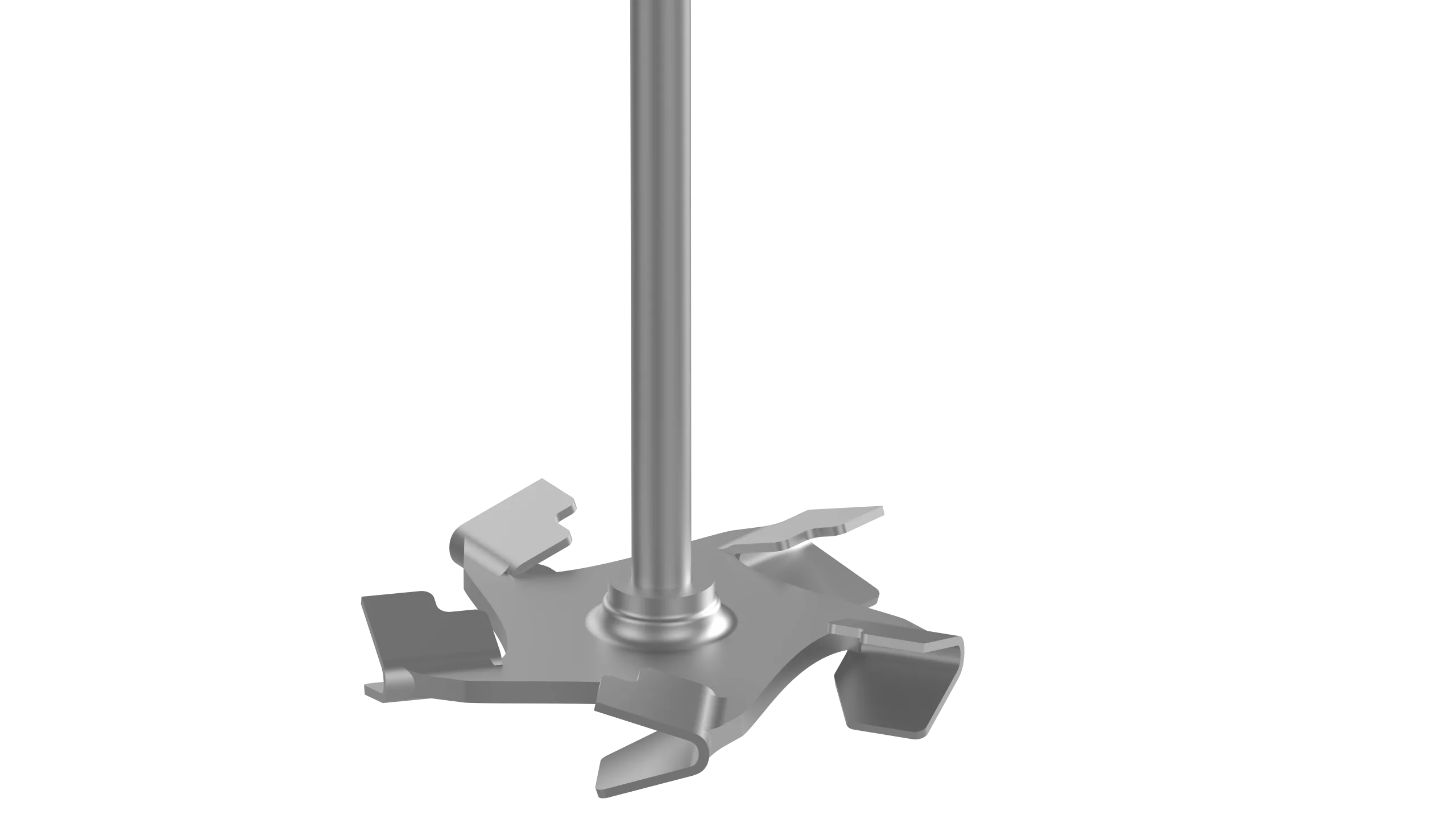

The GDM is a high-efficiency radial flow gas dispersing impeller. Thanks to its advanced gas dispersing blade design, it is compatible with both perforated and non-perforated sparger systems. It operates at constant speed without power loss even at high gas flow rates, delivering optimized mass transfer.
The GDM is a radial flow gas dispersing impeller manufactured by Mechanimix. Operating within a diameter range of 200–2000 mm and a gas feed capacity of 0.5–2 VVM, it delivers consistent performance even at high gas flow rates thanks to its clog-free gas separator ring design. It is the preferred choice for gas-liquid mass transfer processes in the chemical, pharmaceutical, biotechnology and hydrometallurgy industries.
High-efficiency radial flow impeller design effectively breaks up gas bubbles to create small and uniform bubble distribution.
The specially profiled gas dispersing blade geometry maximizes the gas-liquid contact surface area, increasing the mass transfer coefficient.
Fully compatible with both perforated and non-perforated sparger systems, easily adapting to different process configurations.
Operates at constant speed without power loss even at high gas flow rates, delivering continuous and predictable performance.
Simultaneously suspends solid and gas phases at high gas flow rates, optimizing reaction efficiency.
The clog-free gas separator ring design achieves high volume limits even under bubble-free conditions.
Discover the maximum mass transfer performance of the GDM impeller in gas-liquid reaction systems.
Maximizes microorganism yield by providing high oxygen transfer in aerobic fermentation processes.
Optimizes gas dispersion in high-pressure hydrogenation reactors, increasing reaction conversion rates.
Creates controlled and safe reaction conditions through uniform gas distribution in chemical oxidation reactors.
Delivers safe gas feeding and dispersion performance in ethylene oxide and propylene oxide reactions.
Provides effective mass transfer in gas-liquid-solid three-phase systems during pressure leaching and oxidative leaching processes.
Offers high-efficiency gas dispersion with hygienic design in food-grade fermentation and carbonation processes.
| Feature | GDM Impeller |
|---|---|
| Diameter Range | 200 – 2000 mm |
| Blade Count | 6 |
| Material | AISI 316L / Hastelloy / Titanium |
| Gas Capacity | 0.5 – 2 VVM |
| Flow Type | Radial |
| Speed Range | 50 – 500 rpm |
| Sparger Compatibility | Perforated and non-perforated sparger |
| Gas Flooding | High resistance, no power loss |
| Power Number (Np) | Medium – high |
| D/T Ratio | 0.3 – 0.45 |
Our engineering team will design the most suitable equipment solution for your process conditions using CFD analysis.
