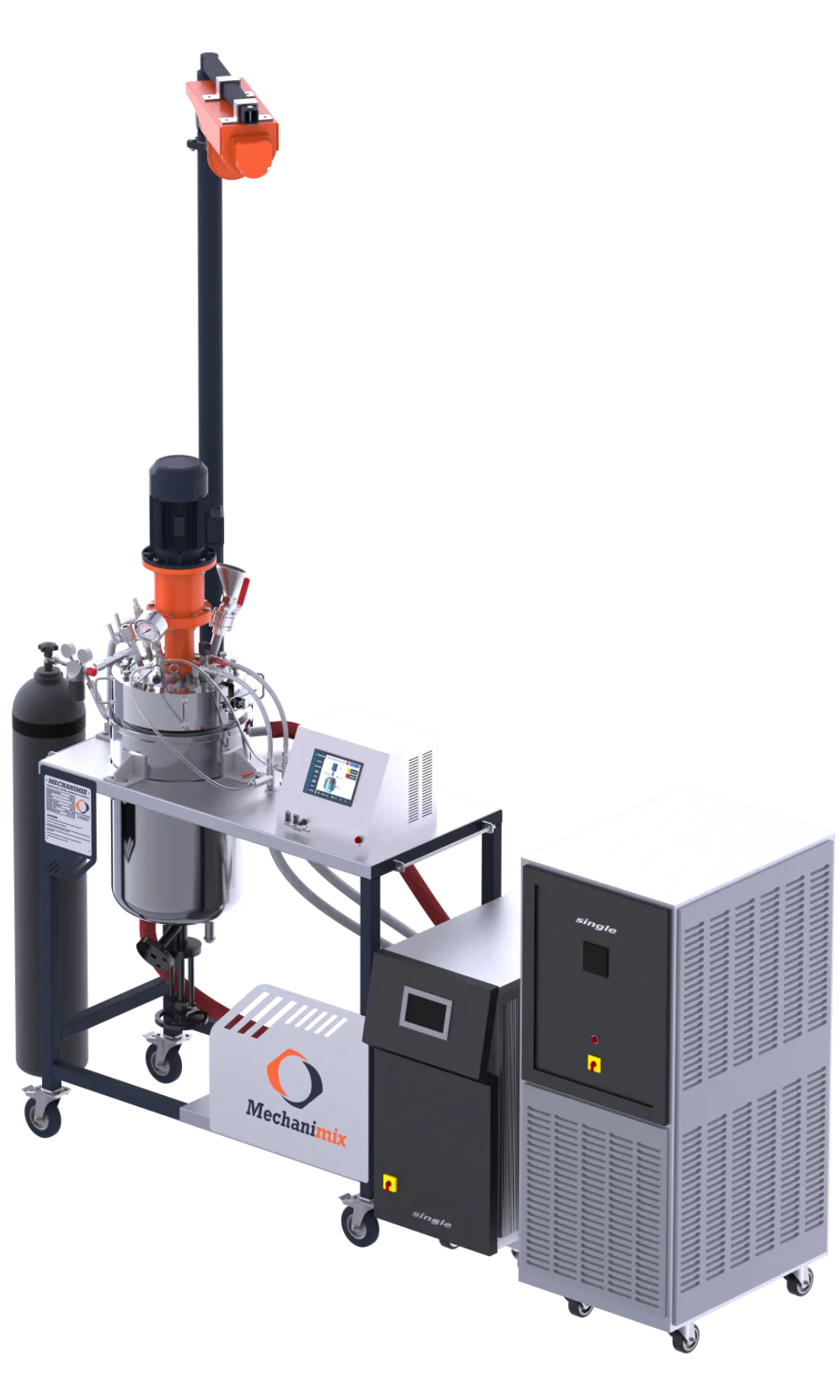

The HPR Series is a range of high pressure reactors designed for laboratory research and small-scale production processes. With a robust structure capable of operating up to 250 bar pressure and 500°C temperature, magnetically driven zero-leakage mixing system and dual-loop thermal management, it provides precise process control.

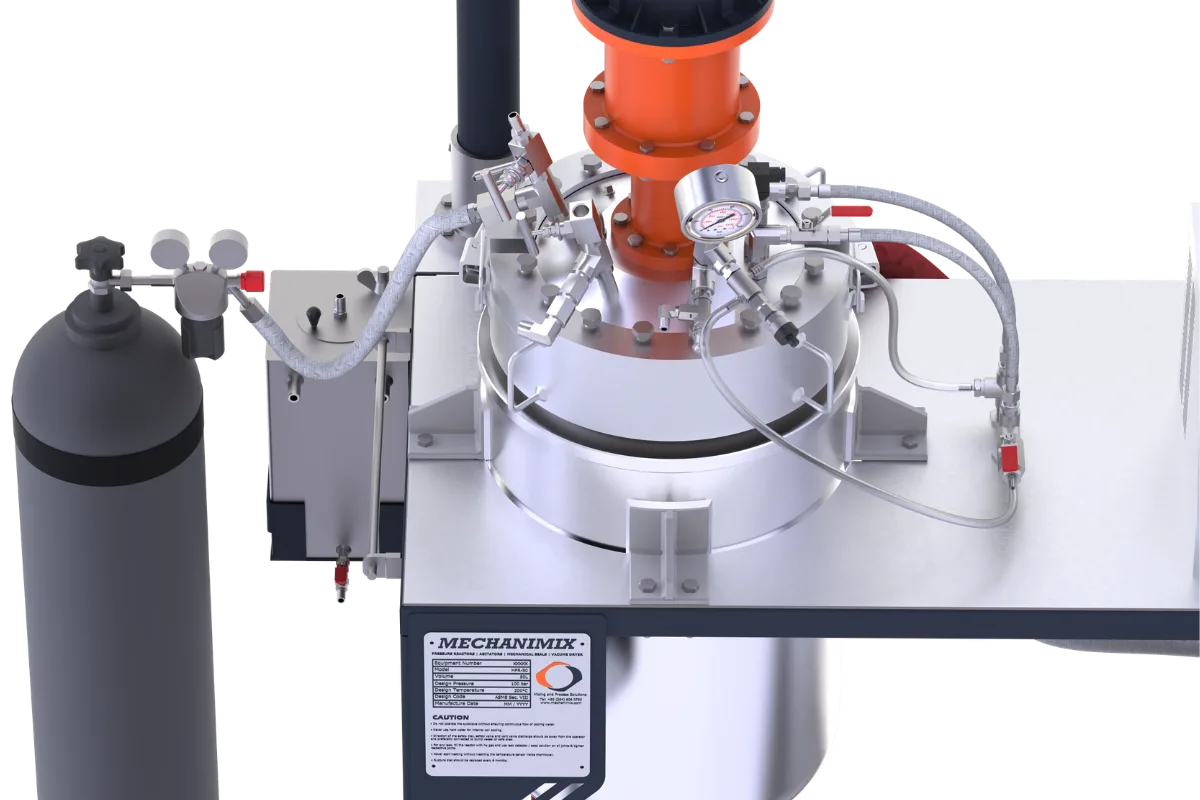

The HPR Series is a range of high pressure laboratory and pilot-scale reactors manufactured by Mechanimix. Operating at volumes from 5 to 100 liters, pressures up to 250 bar and temperatures up to 500°C, it delivers reliable solutions for R&D and pilot production processes in the chemical, pharmaceutical, petrochemical and energy sectors with magnetically driven zero-leakage mixing, dual-loop heating/cooling system and customizable nozzle configuration.
Design up to 250 bar and 500°C; stable and reliable performance under extreme conditions
Zero-leakage hermetically sealed design; contactless torque transmission without mechanical seal, maintenance-free
Double jacket heating + internal helical cooling coil; independent precision temperature control and optimized energy consumption
Safety, instrumentation, sampling and injection nozzles configured to process requirements
Optional hollow shaft and gas induction impeller; precise gas flow control with MFC, enhanced mass transfer
We can design to ATEX and Ex-proof requirements; explosion-proof construction for Zone 1 and Zone 2 classification
Chemical synthesis under high pressure, catalytic reactions and new molecule development studies
High temperature/pressure test environment for hydrogenation, oxidation and cracking processes
API development, formulation optimization and small-scale production processes that can be designed to GMP requirements
Nanomaterial synthesis, polymer development and advanced materials research
Hydrogen storage, fuel cell catalysis research and biofuel production experiments
Scaling laboratory results to industrial scale; validation of process parameters
| Specification | HPR-5 | HPR-25 | HPR-50 | HPR-100 |
|---|---|---|---|---|
| Working Volume | 5 L | 25 L | 50 L | 100 L |
| Total Volume | 8 L | 30 L | 70 L | 130 L |
| Min. Mixing Volume | 0.5 L | 3 L | 7 L | 15 L |
| Design Pressure (bar) | 100, 200, 250 | 100, 200, 250 | 100, 200 | 50, 100 |
| Design Temperature | Up to 500°C | Up to 500°C | Up to 500°C | Up to 500°C |
| Motor Power | 0.2 kW | 0.4 kW | 1 kW | 2.2 kW |
| Magnetic Coupling Torque | 4 Nm | 8 Nm | 12 Nm | 20 Nm |
| Vessel Inner Diameter | 135 mm | 245 mm | 345 mm | 440 mm |
| Material of Construction | SS316L, Titanium, Monel, Nickel, Hastelloy, Inconel | |||
| Shaft Sealing | Zero-leakage magnetic coupling | |||
| Heating | Ceramic electric band heater + double jacket | |||
| Cooling | Internal helical coil (independent circuit) | |||
| Gasket | PTFE (300°C), Grafoil (500°C) | |||
Our engineering team will design the most suitable high pressure reactor solution for your process conditions.
