Precise drying at low temperatures under vacuum. A wide range of applications from pharmaceutical APIs to chemical powders, food granules to specialty materials.
Efficient drying without compromising product quality with vacuum drying solutions tailored for every material type.
Effective drying under vacuum with mechanical agitation. Homogeneous drying for powder and granule materials; can be designed to GMP requirements.
Continuous rotation of the double-cone vessel delivers gentle, homogeneous drying for heat- and oxygen-sensitive materials. Fully closed system, automatic discharge.

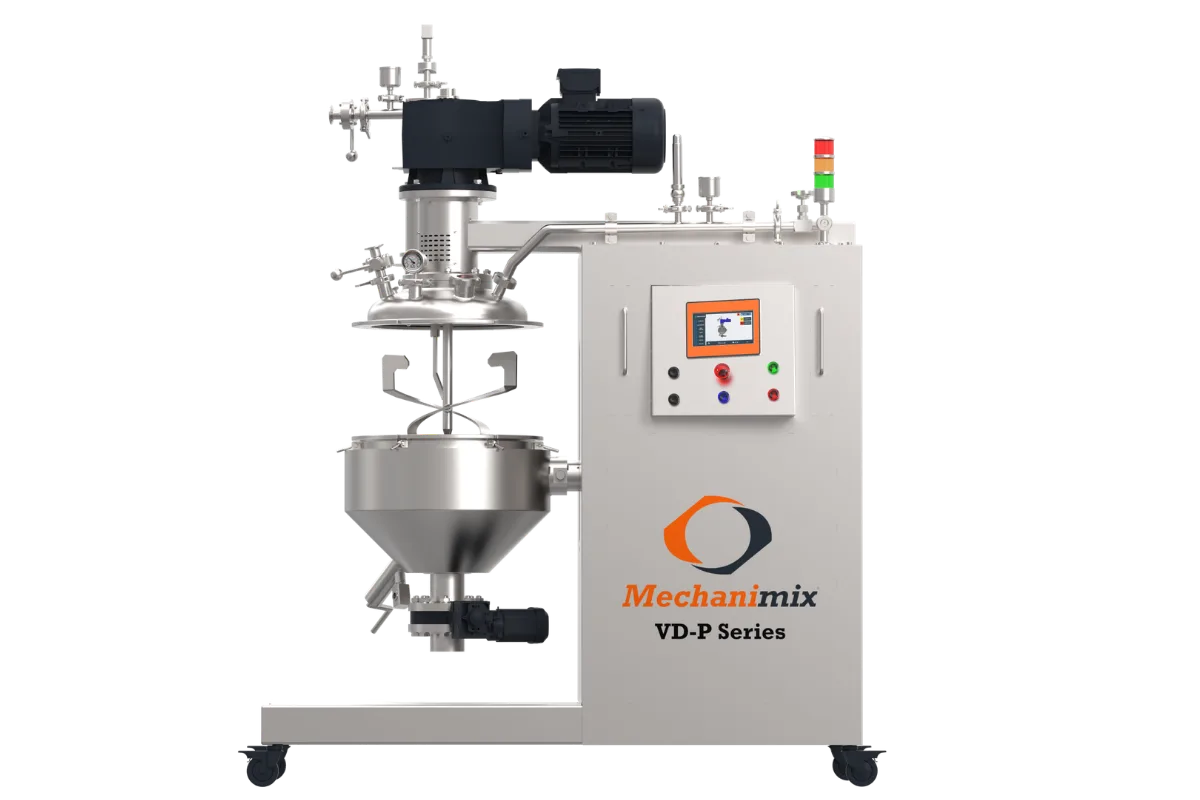

Conical vessel with top-mounted agitator delivers precise, contamination-free lab-scale drying. Ideal for pharmaceutical R&D and high-value materials.
| Specification | VD-M Series | VD-R Series | VD-P Series |
|---|---|---|---|
| Working Volume | 100 L – 15 m³ | 4 L – 9 m³ | 5 L – 100 L |
| Motor Power | 1.5 – 90 kW | 0.18 – 11 kW | 1.1 – 5.5 kW |
| Agitator RPM | 15 – 60 | 3 – 13 | 20 – 117 |
| Temperature | 25 – 150°C | 25 – 150°C | 25 – 150°C |
| Pressure (gauge) | −1 / +0.45 bar | −1 / +0.4 bar | −1 / +2 bar |
| Drying Type | Agitated | Double Cone Rotary | Conical Vessel (Lab) |
| Heating | Jacketed / Electric | Jacketed | Jacketed / Electric |
| Material | AISI 316L / 304 | AISI 304 / 316L | AISI 316L / Hastelloy |
| Control | PLC / SCADA | PLC | PLC / SCADA |
| Design basis (on request) | GMP / ATEX | ASME / PED | GMP / ATEX |
Mechanimix vacuum dryers are designed for heat-sensitive materials that require low-temperature drying. They provide homogeneous drying while preserving product quality in pharmaceutical APIs, food additives, fine chemicals and polymer powders. Can be designed to GMP, ATEX and Ex-proof requirements.
Low pressure down to 0.5 mbar
Quality preservation for heat-sensitive products
We can design to GMP and ATEX requirements for pharmaceutical and explosive-atmosphere service
PLC/SCADA, automatic discharge
Drying heat-sensitive materials from pharmaceuticals to food, chemicals to polymers.
Active pharmaceutical ingredient drying, crystal drying, granule processing
Flavor, enzyme, protein and natural extract drying
Pigment, paint raw material, catalyst and specialty chemical drying
Polymer powder, resin, elastomer and composite material drying
Let us determine the most suitable vacuum drying system together based on your material properties and production capacity.
