The HWM-B is a wide blade axial flow impeller that provides uniform energy distribution in low to medium viscosity systems. With low shear force, it delivers stable performance in crystallization, precipitation and suspension/emulsion polymerization processes. Preferred for its reliable solid suspension and high heat transfer capacity even in gas-liquid systems.

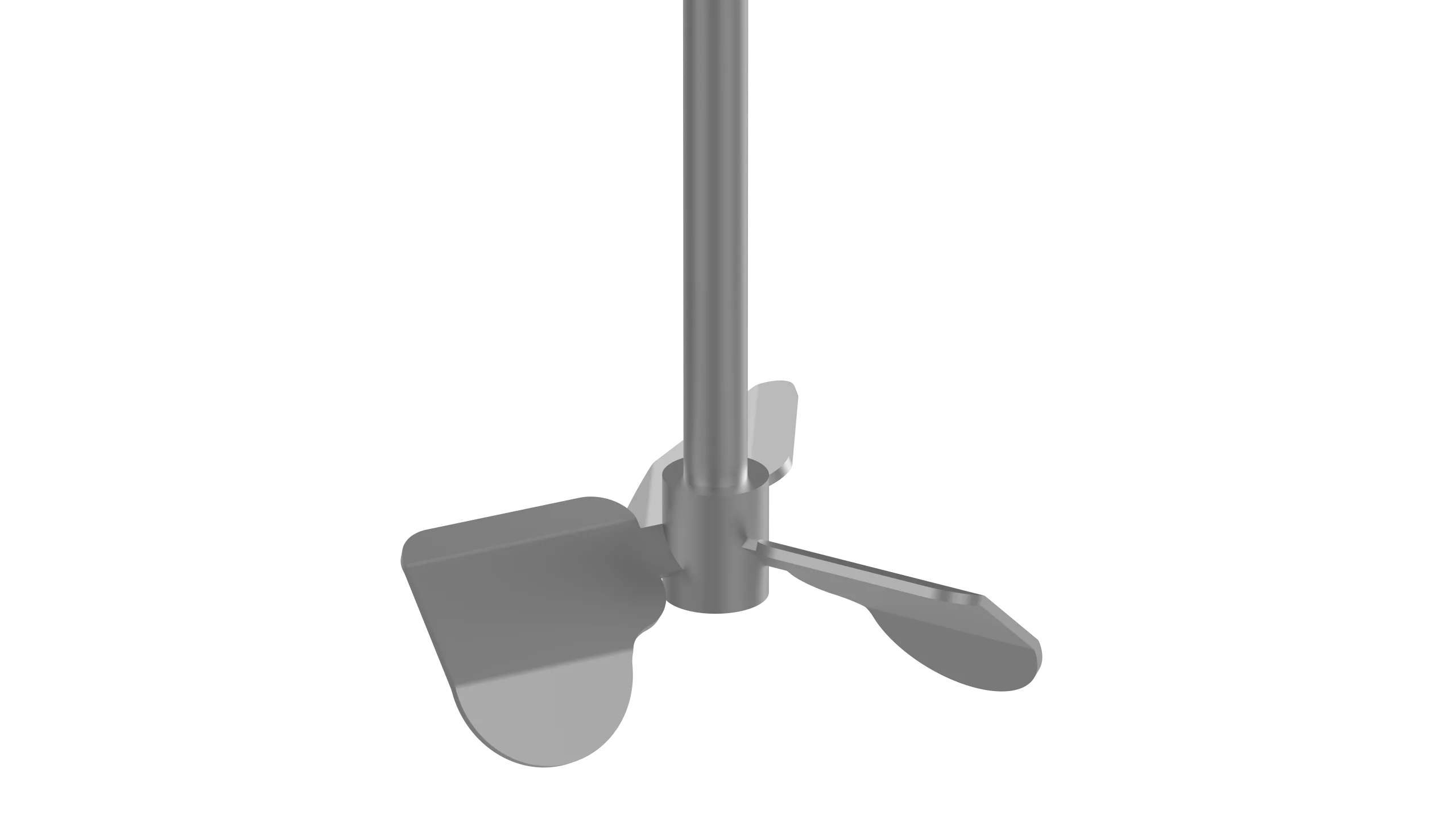

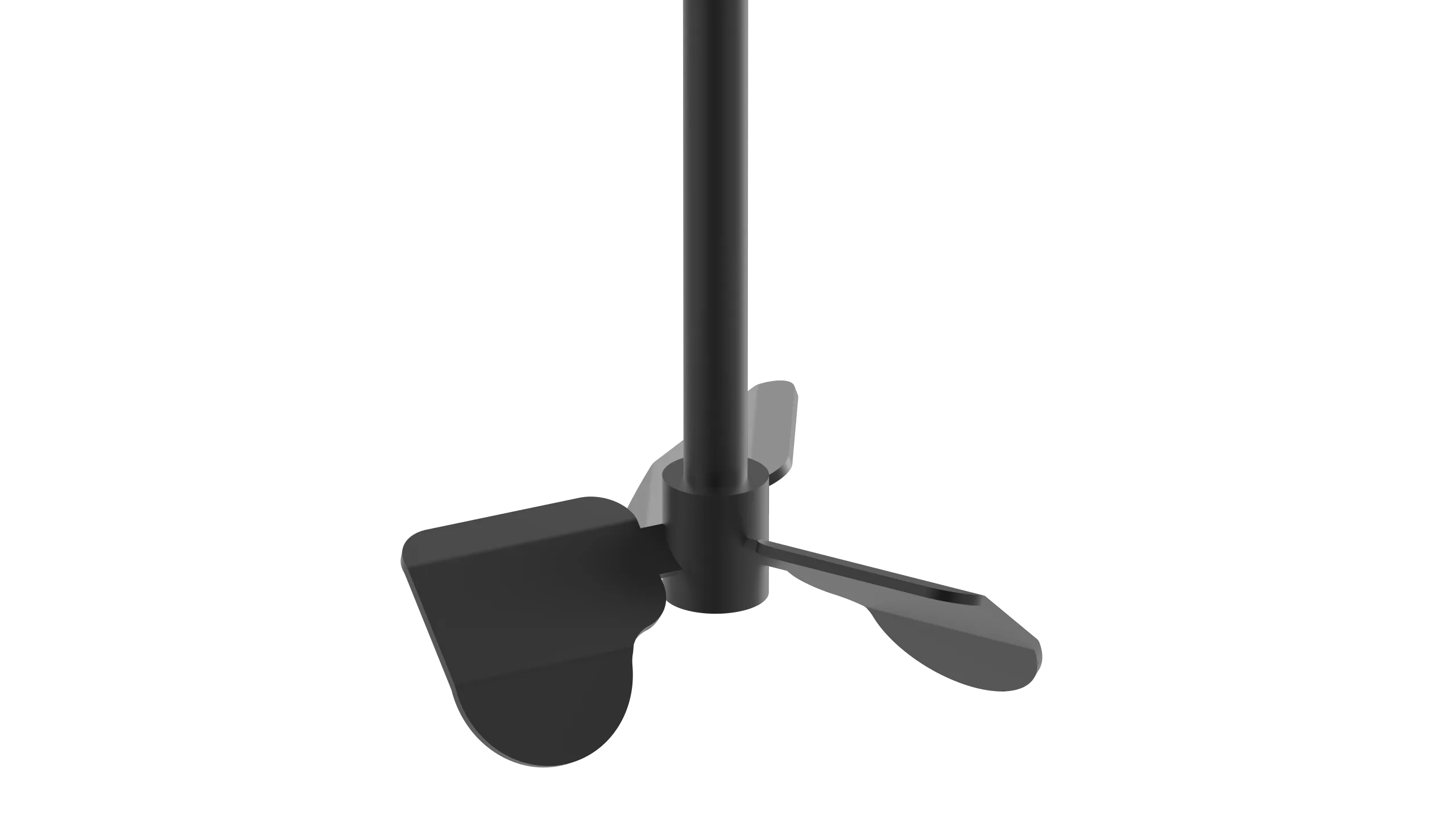

The HWM-B is a wide blade axial flow impeller manufactured by Mechanimix. It operates in a diameter range of Ø300–3500 mm and a viscosity range of 1–800 cP. It delivers ideal performance in processes requiring low shear force with minimal local turbulence, and is preferred for its high heat transfer capacity in crystallization, precipitation and emulsion polymerization applications.
Wide blade axial flow design provides high flow capacity and uniform energy distribution at low speeds.
Delivers low shear force with minimal local turbulence, preserving crystal structure and polymer chain integrity.
Optimizes process temperature control through efficient heat transfer enabled by uniform flow distribution.
Provides reliable solid suspension performance even in gas-liquid systems for dependable process operation.
Achieves homogeneous mixing in a short time through wide blade geometry and strong axial thrust.
Offers high corrosion resistance in aggressive chemical environments with Duplex steel and Hastelloy material options.
Discover the rapid mixing and low shear force performance of the HWM-B wide blade impeller.
Low shear mixing and homogenization processes in chemical reactors and storage tanks.
Controlled mixing and uniform temperature distribution in suspension and emulsion polymerization processes.
Controlled and reproducible crystal quality with low shear force in crystal growth processes.
Precise precipitation and crystallization control in active pharmaceutical ingredient production.
Large volume storage tank mixing in detergent and home care product manufacturing.
Stable solid suspension performance including gas-liquid systems in precipitation and suspension processes.
| Feature | HWM-B Impeller |
|---|---|
| Diameter Range | 300 – 3500 mm |
| Number of Blades | 3 |
| Blade Type | Wide blade, axial flow (HWM-B) |
| Material | AISI 316L / Duplex / Hastelloy |
| Viscosity Range | 1 – 800 cP |
| Flow Type | Axial |
| Speed Range | 5 – 200 rpm |
| Energy Distribution | Uniform, minimal local turbulence |
| Shear Force | Low |
| Gas-Liquid Performance | Stable solid suspension in gassed conditions |
Our engineering team will design the most suitable equipment solution for your process conditions with CFD analysis.
Get a Free Quote →

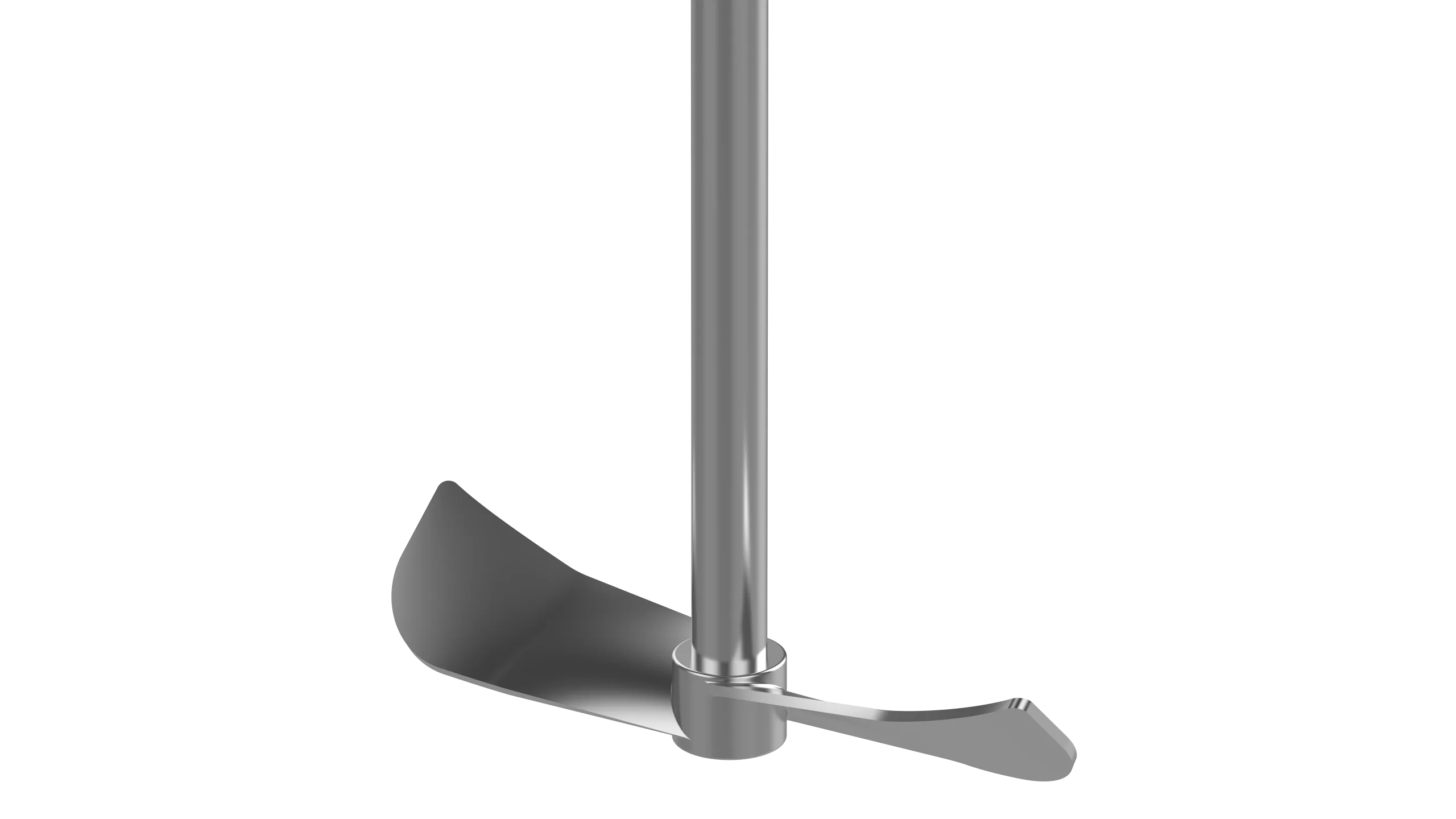

Standard wide blade axial thrust impeller; provides uniform energy distribution and efficient mixing in low to medium viscosity systems.
View Details →
Narrow blade high viscosity impeller; offers effective mixing in laminar flow conditions with its modular design for polymer, food and cosmetics processes.
View Details →
Dual flow impeller; delivers powerful mixing performance with combined radial and axial flow in high viscosity systems.
