Industrial-grade reactors engineered to meet the demanding requirements of the chemical, pharmaceutical and food industries. Available in capacities up to 40,000 liters, with precise thermal control across -1/+6 bar pressure and -28°C to 200°C temperature range, continuous agitation performance and ATEX/IECEx compliance.

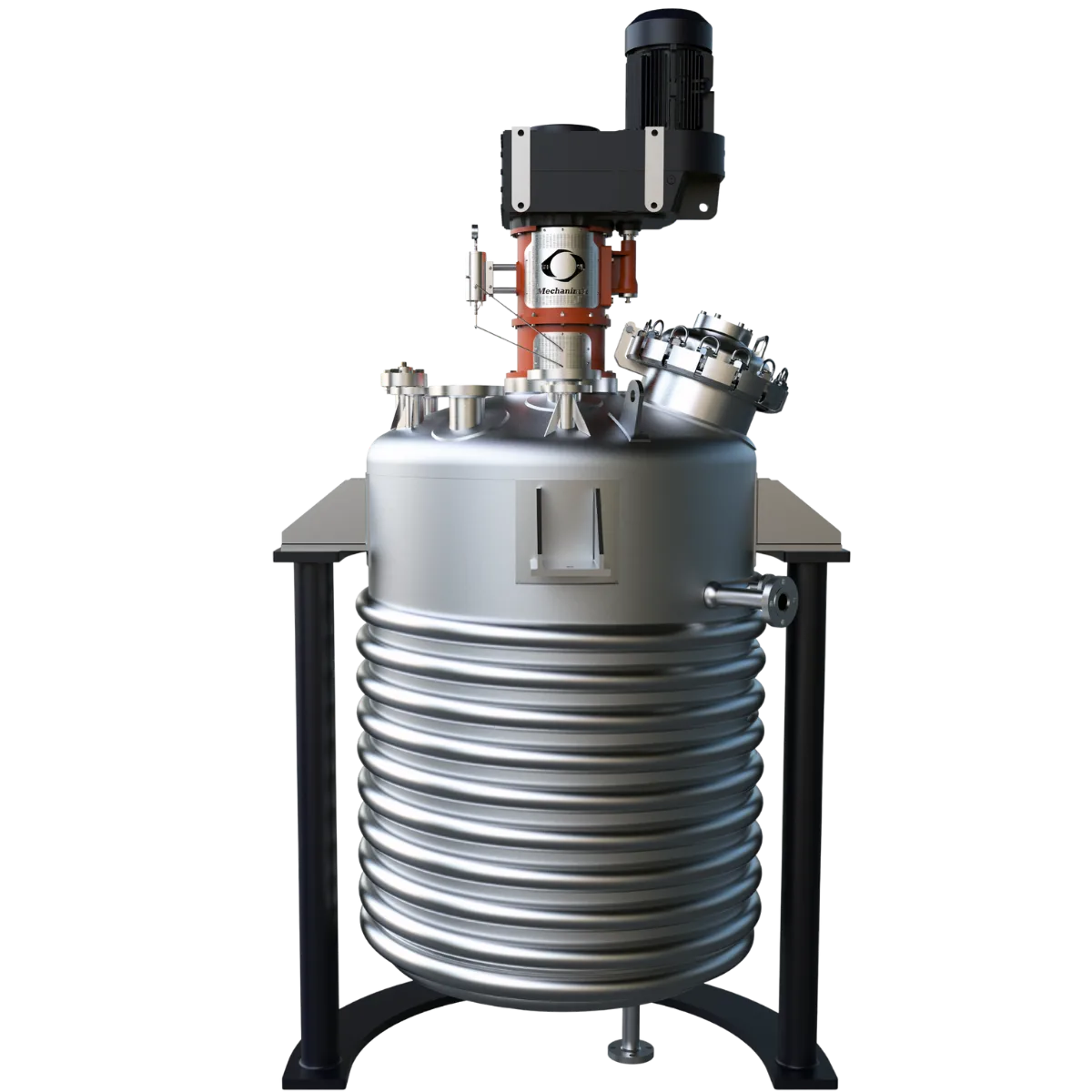

The RC-M Series is an industrial-grade stainless steel reactor manufactured by Mechanimix. It delivers precise thermal control and continuous agitation in capacities up to 40,000 liters, operating at -1/+6 bar pressure within a -28°C to 200°C temperature range. With CFD-validated impeller design and smart monitoring systems, it provides reliable solutions for the chemical, pharmaceutical and food industries.
Precise temperature control between -28°C and 200°C; reliable performance under thermal cycling and pressure fluctuations
Operating pressure from -1 to +6 bar(g); high mechanical strength against pressure cycling
Impeller geometry, flow symmetry and heat transfer efficiency verified through FEM and CFD simulations
Real-time monitoring of temperature, pressure, pH, agitation speed, torque and vibration; predictive maintenance
Explosion-proof design for Zone 1 and 2; safe operation in chemical, petrochemical and biofuel sectors
Single, double and triple mechanical seals plus cartridge-type options; shaft diameter 60–220 mm
Watch the mechanical seal maintenance procedure on the RC-M Series Reactor Agitator Unit.
Chemical synthesis, polymerization and resin processing under controlled pressure and temperature; large-scale production processes
Drug formulation, intermediates and active pharmaceutical ingredient (API) production; GMP-compliant reactor environments
Mixing, heating and reacting food ingredients; consistent quality and scalability in high-volume production
Controlled temperature and agitation for polymerization, resin production and paint formulations; Titanium and Nickel alloy options
ATEX/IECEx certified operation in hazardous environments; solvent production, hydrogenation and synthesis processes
Precise temperature control for emulsion, cream and lotion production; formulation stability with jacketed heating/cooling
| Feature | RC-M Series |
|---|---|
| Capacity | 630 – 40,000 L |
| Design Pressure | -1 to +6 bar(g) |
| Design Temperature | -28°C to 200°C |
| Motor Power | 2.2 – 37 kW |
| Shaft Diameter | 60 – 220 mm |
| Speed Range | 50 – 400 RPM (project dependent) |
| Mechanical Seal | Single, double and triple; cartridge type |
| Materials | AISI 316, AISI 304L, Titanium, Nickel Alloys, Carbon Steel, Coatings |
| Impeller Types | HWM, HM, HWM-B, HVM, TVM, GDM, GM, GDS |
| CFD/FEM Validation | Flow analysis, heat transfer and pressure distribution simulations |
| Ex-Proof | Full compliance with ATEX and IECEx standards (Zone 1 & 2) |
| Smart Monitoring | Temperature, pressure, pH, agitation speed, torque, vibration monitoring |
Our engineering team will design the most suitable equipment solution for your process conditions using CFD analysis.
Get a Free Quote →
Laboratory and pilot plant reactors. 5–100 L volume, 5 bar pressure, modular design. R&D and formulation optimization.
View Details →
Double-jacketed heating/cooling reactor. 500–5,000 L, PTFE scraper anchor agitator. Cosmetics, pharmaceutical and food processes.
View Details →

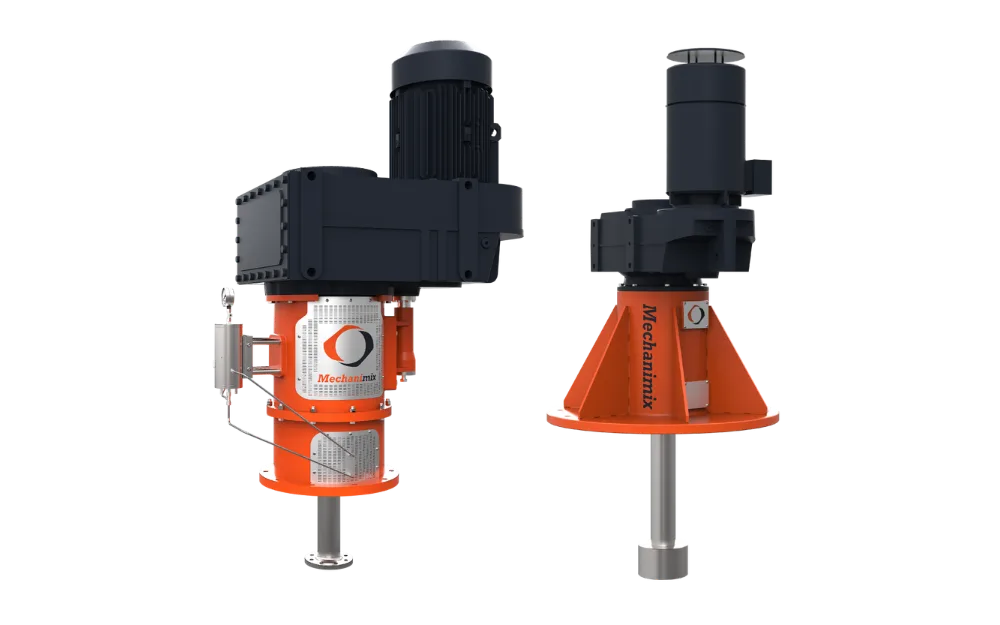

Top entry mixers
