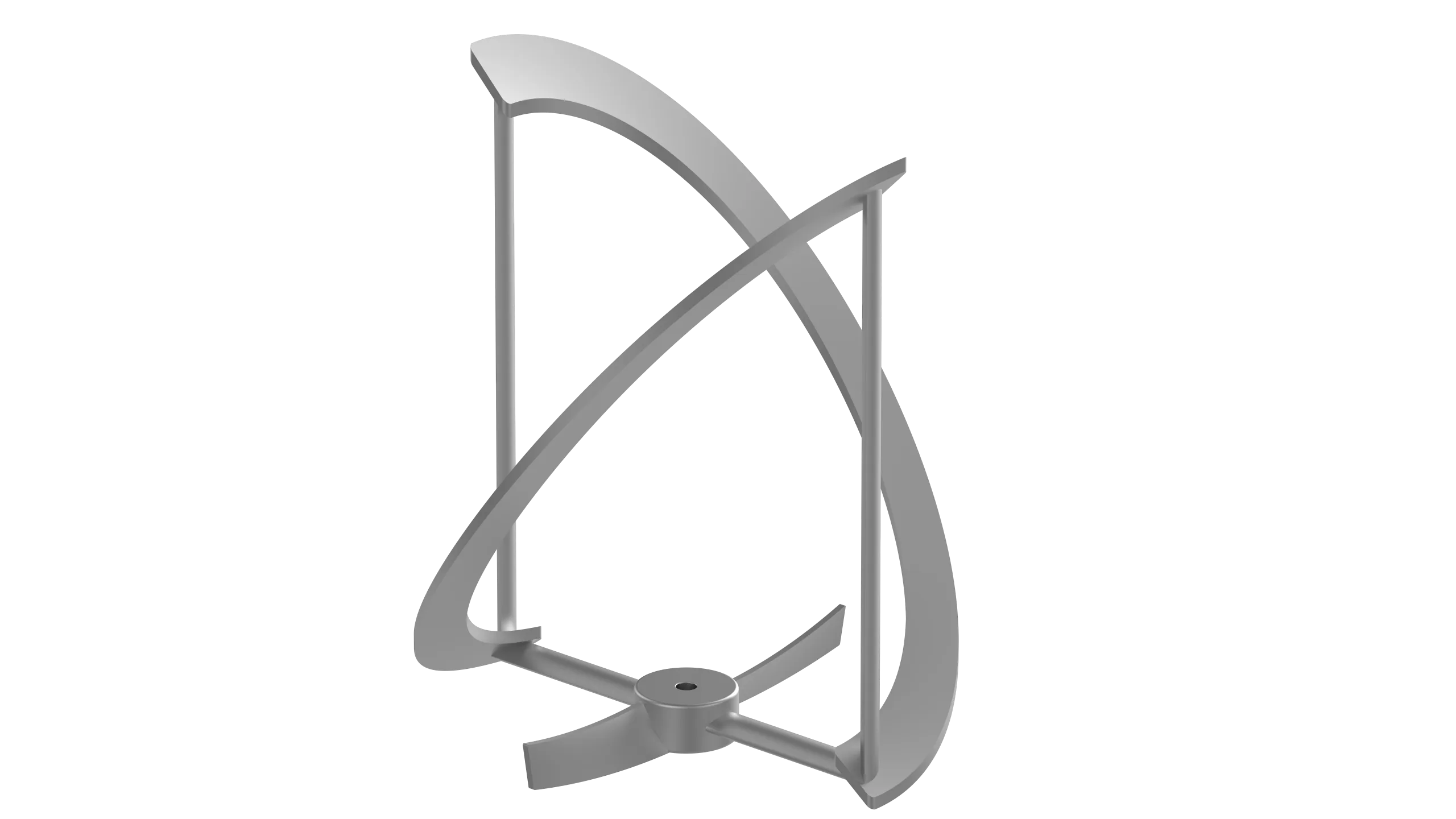

The HVM impeller generates maximum shear force under laminar flow conditions in high viscosity fluids through its narrow blade geometry. Its highly flexible modular design enables bi-directional rotation and adapts to different mixing stages. With optional internal baffle plates, it maximizes near-wall shear force, delivering excellent performance in dense materials such as adhesives, polymers, creams and greases.
The HVM is a high viscosity mixing impeller manufactured by Mechanimix. It operates across a diameter range of Ø200–2500 mm and a viscosity range of 500–100,000 cP. Its narrow blade geometry generates maximum shear force under laminar flow conditions, making it the preferred choice for mixing dense materials such as adhesives, creams and greases in the food, cosmetics, polymer, paint and pharmaceutical industries.
The narrow blade profile generates maximum shear force in the near-wall clearance, ensuring effective mixing of dense materials.
The highly flexible modular system enables rapid adaptation to different process stages and easy configuration changes.
The ability to rotate in both directions provides flexible operation during mixing and discharge stages.
Optional internal baffle plates provide flow redirection and enhanced shear force capacity.
Short mixing times and effective flow distribution deliver excellent heat transfer capacity.
The blade design and bi-directional rotation enable fast and complete tank discharge.
Discover the shear-sensitive mixing performance of the HVM impeller in high viscosity fluids.
Homogeneous mixing and temperature control in dough, gel, sauce and dense food products.
Precise mixing and homogeneous texture in cream, mascara, ointment and lotion production.
High viscosity mixing and reaction control in polymerization, rubber and adhesive manufacturing.
Effective dispersion and homogenization in high viscosity paint, varnish and coating formulations.
GMP-compliant precision mixing processes for ointment, gel and sealant production.
Flexible production configuration with modular impeller for grease, sealant and adhesive formulations.
| Feature | HVM Impeller |
|---|---|
| Diameter Range | 200 – 2500 mm |
| Number of Blades | 2 – 3 |
| Blade Type | Narrow blade, laminar flow optimized |
| Material | AISI 316L / Hastelloy |
| Viscosity Range | 500 – 100,000 cP |
| Flow Type | Radial + Axial (combined) |
| Speed Range | 5 – 150 rpm |
| Rotation Direction | Bi-directional |
| Modular Design | Adjustable, suitable for different stages |
| Optional | Internal baffle plates |
Our engineering team will design the most suitable equipment solution for your process conditions with CFD analysis.
