Engineered with a high-quality stainless steel construction, the VD-P Series delivers precise, homogeneous and contamination-free drying for heat-sensitive and high-value materials. The conical vessel with a top-mounted agitator ensures thorough mixing and residue-free discharge, while the integrated heating jacket and vacuum system enable rapid drying.

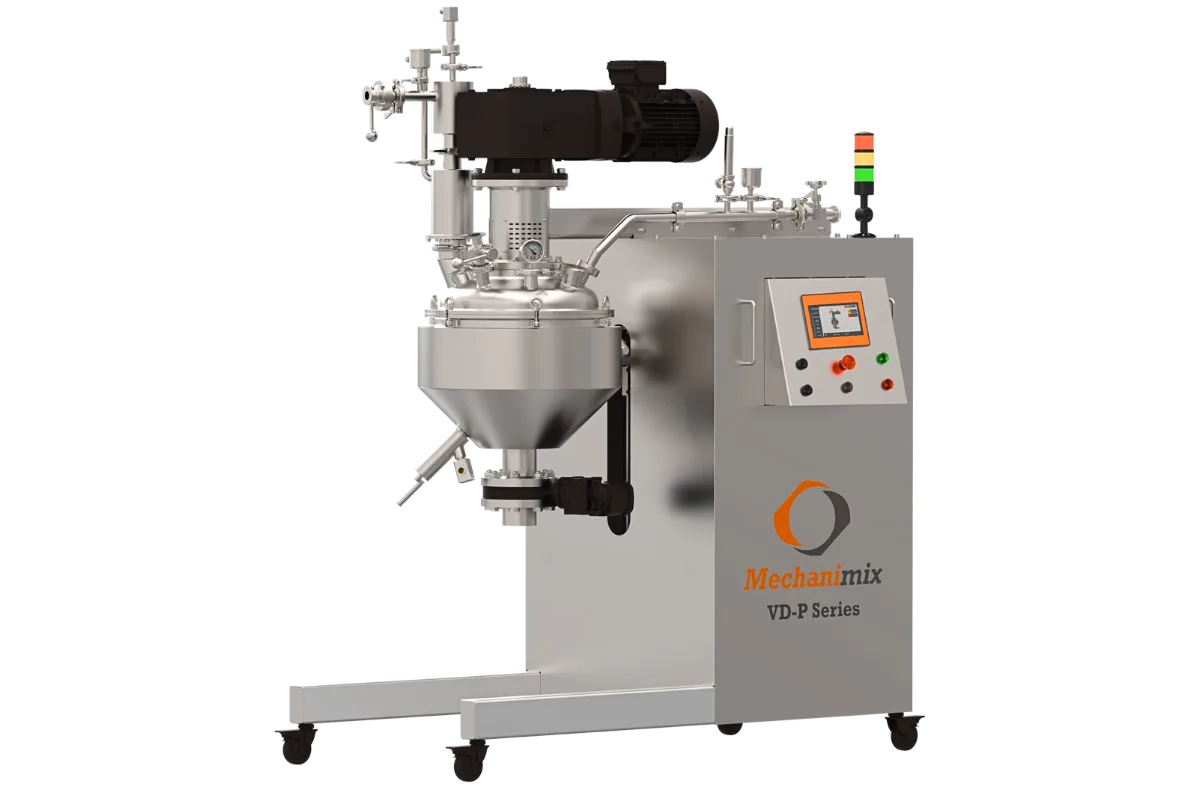

The VD-P Series is a laboratory-scale vacuum dryer manufactured by Mechanimix. Operating with a capacity of 5–100 liters, 5.5 kW motor power and a temperature range of 25–150°C, it features a conical vessel for thorough mixing and residue-free discharge. The integrated heating jacket provides precise temperature control, making it the preferred choice for R&D and pilot-scale drying applications.
Top-mounted agitator for thorough mixing and residue-free discharge; high drying efficiency even in small batches
Integrated heating jacket for accurate thermal stability and repeatable lab results; 25–150°C range
Closed vacuum system for clean and safe processing; ideal for sensitive and high-value materials
Condenser, vacuum pump and data logging options; adaptable to various laboratory configurations
Digital interface for temperature and pressure tracking; process validation and repeatability
Lightweight and easy-to-clean construction suitable for laboratory environments; quiet and stable operation
Formulation development, API drying and small-scale sterile processes; API sample preparation
Testing and drying of heat-sensitive nutritional powders and functional ingredients; flavor preservation
Precise drying and homogenization of fine and specialty chemicals; solvent removal
Small-scale production, sample preparation and pilot testing under controlled vacuum conditions
Scale-up preparation from laboratory results to industrial production; parameters compatible with VD-M
Contamination-free drying of sensitive cosmetic ingredients and natural extracts
Drag to rotate. The model auto-rotates when you release.
| Feature | VD-P Series |
|---|---|
| Working Capacity | 5 – 100 L |
| Total Volume | 7 – 132 L |
| Operating Temperature | 25 – 150°C |
| Pressure | -1 – 2 bar |
| Motor Power | 1.1 – 5.5 kW |
| Speed Range | 20 – 117 RPM |
| Feed Inlet | DN15 – DN50 |
| Discharge Valve | DN40 – DN125 |
| Dryer Type | Conical vessel, top-mounted agitator |
| Materials | AISI 304, AISI 316, AISI 316L |
| Options | Condenser, vacuum pump, data logging |
| Control | Digital interface; temperature and pressure monitoring |
Our engineering team will design the most suitable equipment solution tailored to your process conditions.
